Vitrobot Standard Operating Procedure

1. Purpose

Setting up, operating, and shutting down the ThermoFisher Scientific (TFS) Vitrobot Mark IV in a safe and effective manner for the preparation of frozen cryo-EM of samples

2. Definitions:

2.1 ThermoFisher Scientific (TFS) Vitrobot Mark IV is a vitrification device for freezing protein samples for CryoEM analysis.
2.2 Liquid Nitrogen (LN2) is a cryogenic liquid stored under pressure.
2.3 Ethane is classified as a flammable gas.

3. Supplies & Equipment

  • PPE (BSL-1)
    • Laboratory Coat
    • Nitrile Gloves
    • Goggles / Safety Glasses
    • Cryogenic Gloves
    • Face Mask
  • Chemicals/Reagents
    • Liquid Nitrogen
    • Ethane
    • 70% Ethanol
    • Distilled Water
    • Sample
    • Filter Paper (Pre-punched Whatman #1 or #541)
    • Pipette and Tips
    • Vitrobot Tweezers
    • Glow Discharged / Plasma Cleaned EM Grids
    • Grid Storage Boxes/Buttons
    • Button Lid Tool (Screwdriver or TFS Pin Tool)
    • LN2 Dewars for Transfer
    • Forceps (fine tip and long tweezers)
    • If BSL-2, place absorbent bench paper before starting work

4. Procedure

4.1 Instrument setup

  1.  Fill humidifier with 60 mL distilled water via tube on the bottom.
  2.  Draw back on the syringe ~10mL to create vacuum in humidifier liquid chamber.

Blotting papers need to be placed before blotting. Use the white plastic rings to secure the blot paper to the pads. This can be done now, or after filling the ethane cup. The amount of time the filter papers is in the environmental chamber before blotting will affect reproducibility.

You should let the chamber equilibrate for 15-20 min (the rest of the setup will likely take this much time).Under options: set process parameters.

    1. Enable “skip grid transfer” and “use foot pedal”, if desired.
    2. Adjust settings as needed.
    3. Commonly Used Settings:
Humidity    100%
Temperature    4℃ – 22℃
Blotting Time    2-5 seconds
Wait time    0-2 seconds
Blot Force    0-15 (instrument specific)
Skip Grid Transfer    Yes
Use Footpetal    Yes

4.2 Cooling the Ethane

Safety note – Liquid ethane is a rapid cryogen and can burn and cause damage to your skin and eyes. You must wear proper PPE and take caution when dispensing.  If the ethane surface freezes while cooling, it may build pressure and splash.

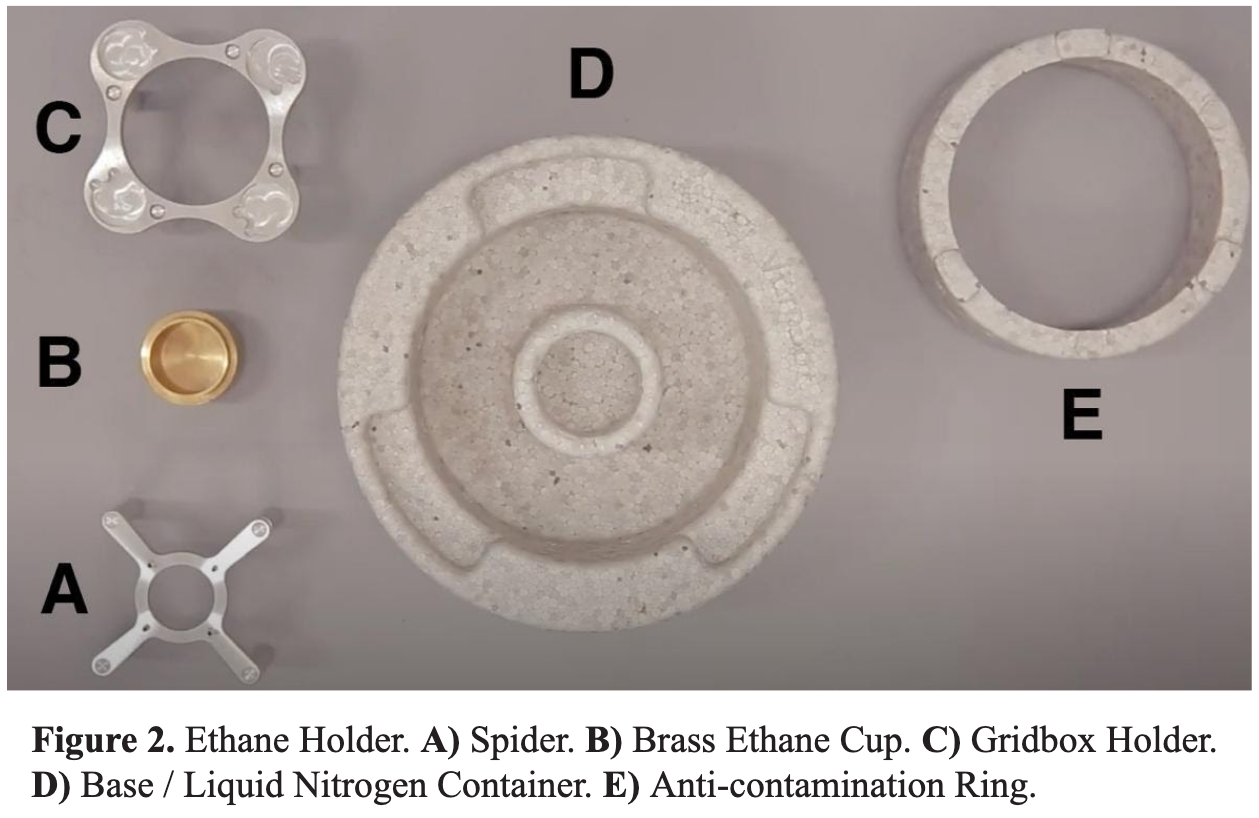

Place brass ethane cup, gridbox holder, spider, and anti-contamination ring inside of the circular foam base (see Fig. 2).

Place the tip of the ethane hose at the bottom of the brass ethane cup (see Fig. 3).  While slowly moving tip ~1cm side to side, increase gas flow very slowly by opening the needle valve on the regulator.

    • Listen for bubbling gas condensing into liquid.
    • Adjust gas flow as necessary until liquid ethane is touching the bottom of the spider.
    • With tip of ethane hose submerged ~5mm, turn off gas flow and remove tip from liquid ethane.  Be sure it is facing away from you and down toward the lab bench.
    • Allow liquid ethane trapped in the tip to evaporate before storing the hose.

This is a good time to check vitrobot settings, glow discharge grids, etc.

If the spider is frozen to the ethane cup, place a nickel on the center of the spider to quickly melt the top.  Do not remove nickel, remove the spider with the nickel instead.

4.3 Freezing Cycle / Plunge Freezing

Homing the blotting pads is essential for consistency.

Replace blot papers after each grid box or every 20 minutes, whichever occurs first.

Make sure the lid is loose enough to move with tweezers and adjust lid opening so that it’s over the slot you plan to load.

    1. Be sure to attach tweezers so they’re oriented the same way every time (e.g. red dot to the right) to increase ice consistency.
    2. Pick up grid and attach to plunge rod so that carbon is facing the right if you are right handed, left if left handed.
    3. Tweezers will “click” into place when properly attached to plunge rod.

Use 70% ethanol and a kim-wipe.

4.4 Revitalizing the Ethane

  1.  Place the room temperature spider upside down on top of ethane cup to thaw.
  2.  Once the ethane starts to melt, remove the spider.
  3.  Submerge spider in liquid nitrogen and allow it to cool.
  4.  Once enough of the frozen ethane has melted we must refreeze it.
  5.  Using pliers, place the cold spider on top of ethane cup, right side up (with legs in the liquid nitrogen)
  6.  Wait for ethane to return to slurry.
  7.  Remove spider

4.5 Shutdown

    1.  Dry and store the Vitrobot tweezers.
    2.  Tap the Exit button on the Vitrobot screen.
    3.  Wait for the Vitribot to shut down: the screen will go completely blank and black
    4.  Flip off the power switch on the back of the Vitrobot.
    5.  Remove and dispose of blotting papers.  Store rings inside chamber.
    6.  Remove and empty the humidifier. Invert and dump humidifier at least 3 times to clear reservoir.
    7.  Place the humidifier upside-down in a Styrofoam container for storage.
    8.  Place the foam base containing liquid nitrogen and ethane container in the hood to evaporate.
    9.  Ensure the ethane tank valves are closed.

5) Chemicals:

    1. Ethane
    2. Liquid Nitrogen
    3. Ethanol 70%
    4. Bleach (NaOCl)

6) Waste Disposal:

    1. Follow facility procedure for proper disposal.
    2. Biohazardous waste will be collected in designated bins lined with red biohazard bags.
    3. Chemical hazardous waste will be segregated by hazard class (e.g. flammable, corrosive) and state (e.g. solid, liquid), appropriately labelled, and placed in the laboratory’s hazardous waste cabinet.
    4. Additional Waste Guidelines [BSL-2]:
      1. Decontaminated solutions with 10% bleach (final conc.) will be disposed as chemical hazard liquid waste into the 10% bleach solution collection bottle.
      2. Bench paper used to protect surfaces is to be folded and discarded in the designated biohazard material bin.
